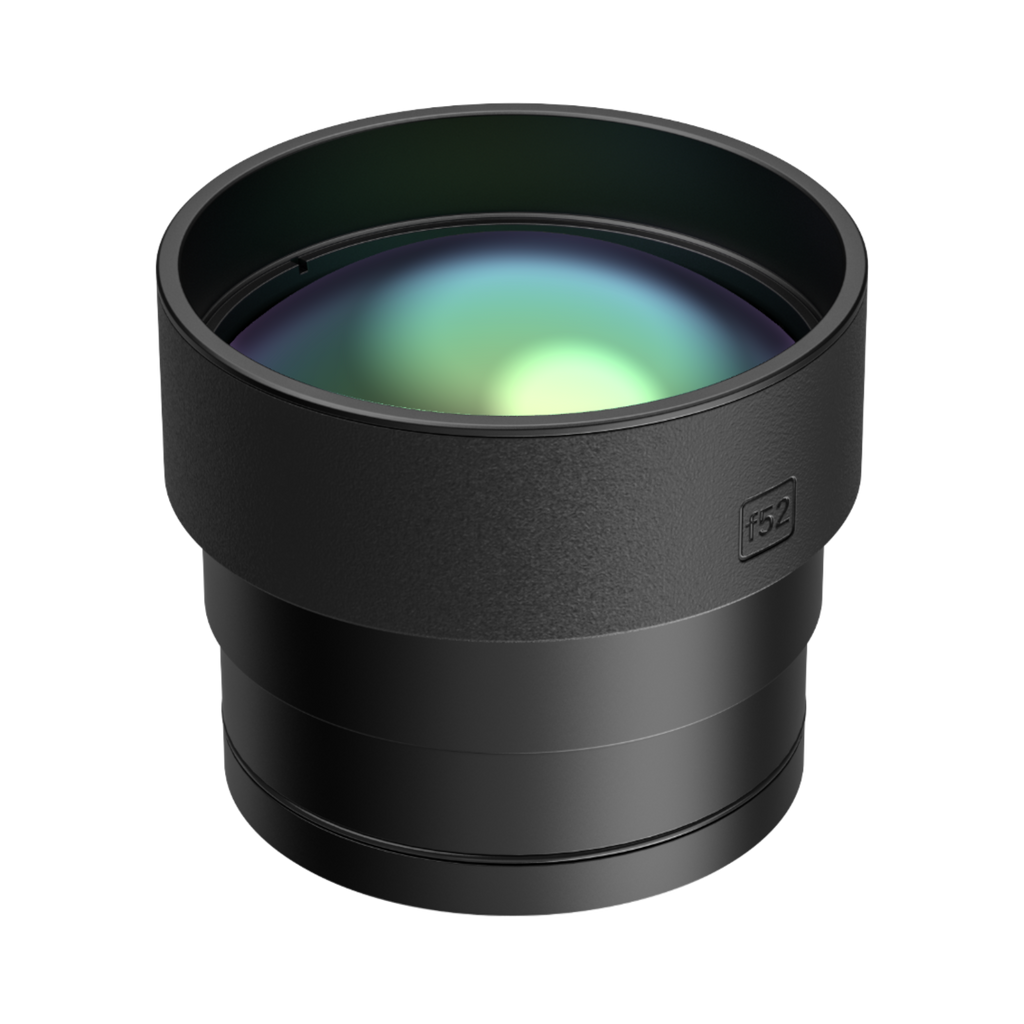

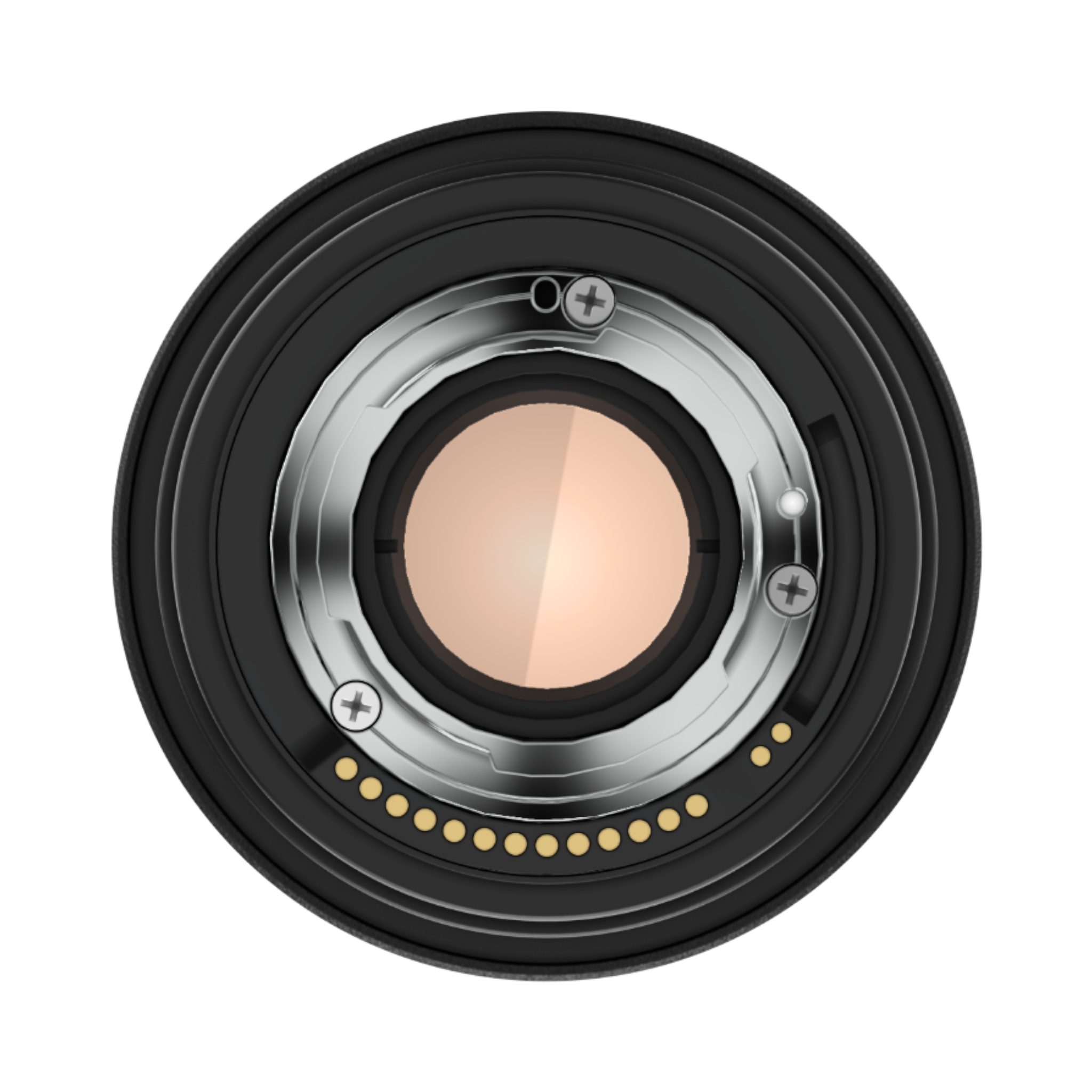

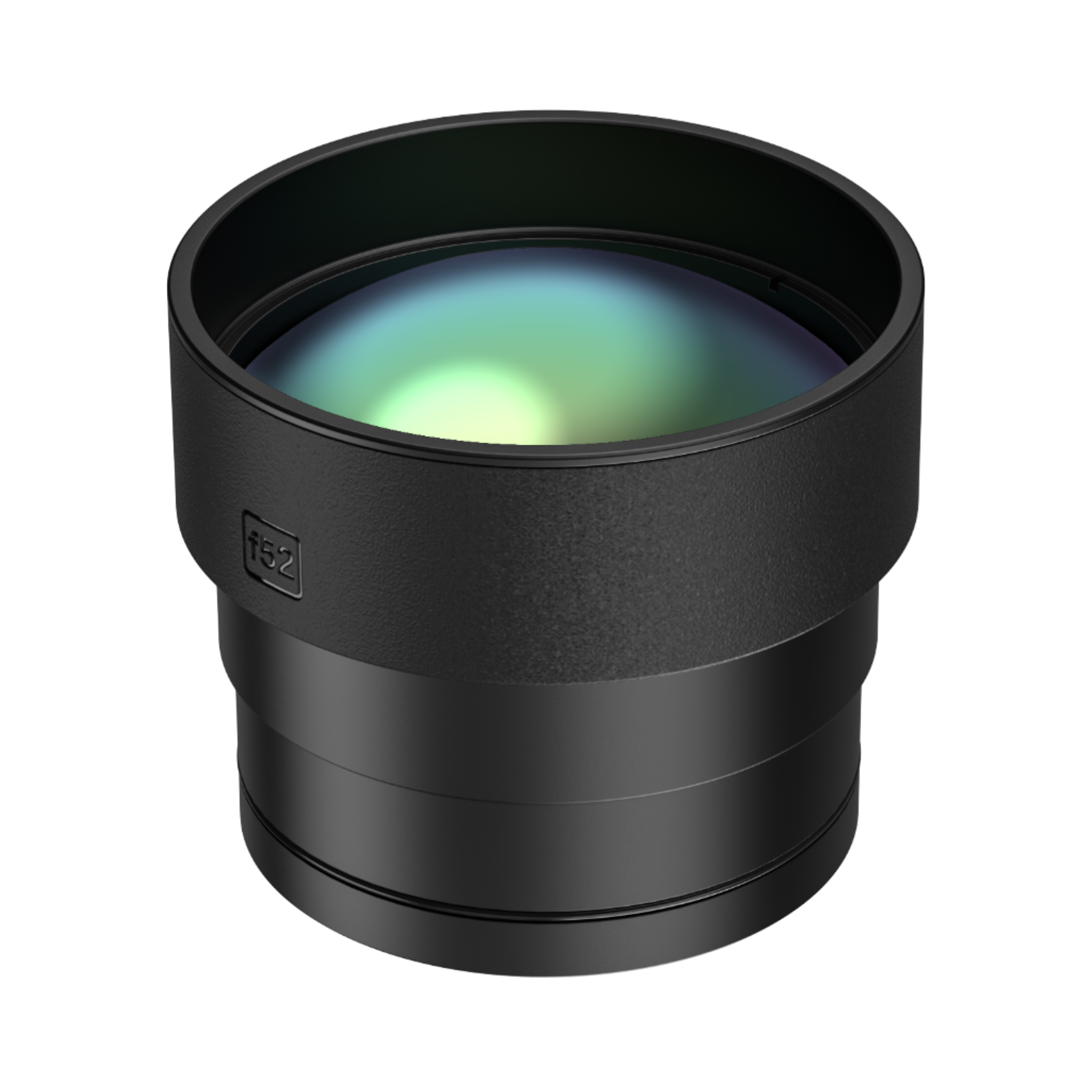

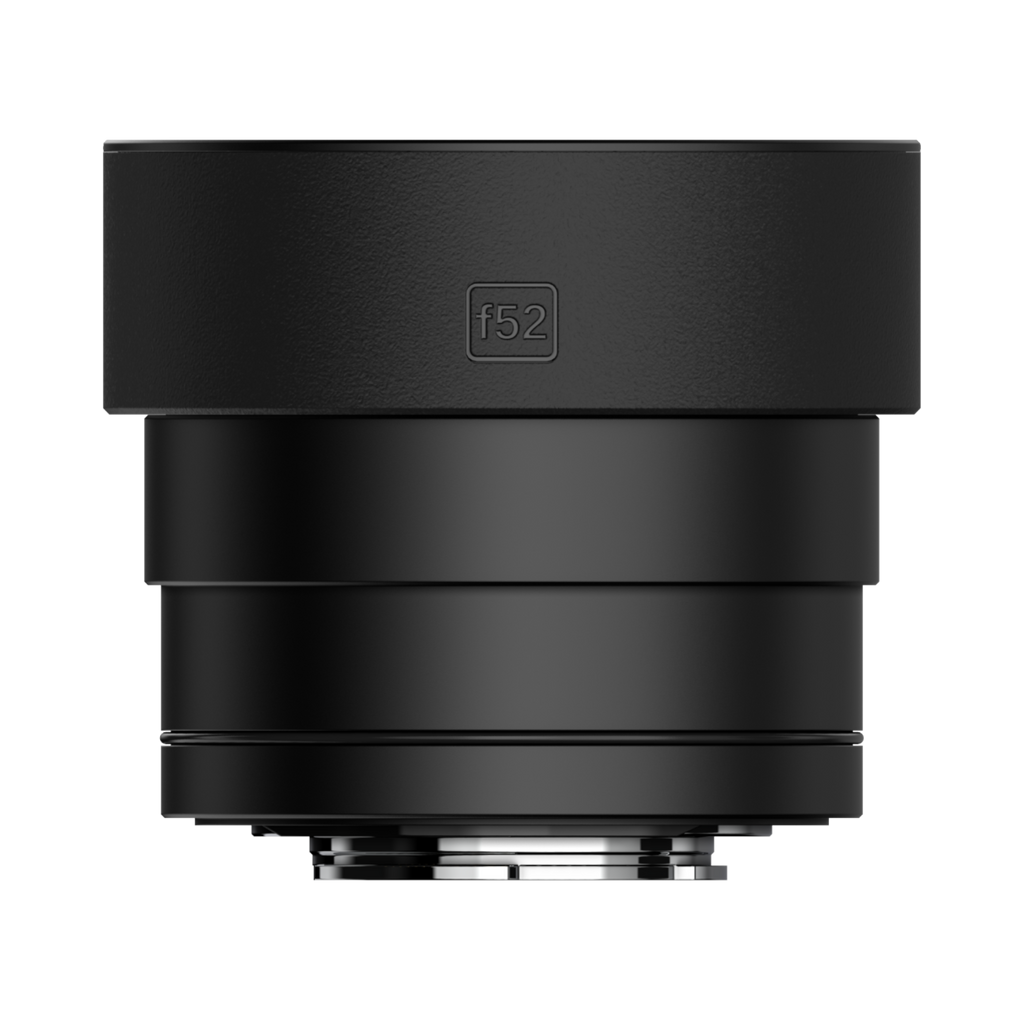

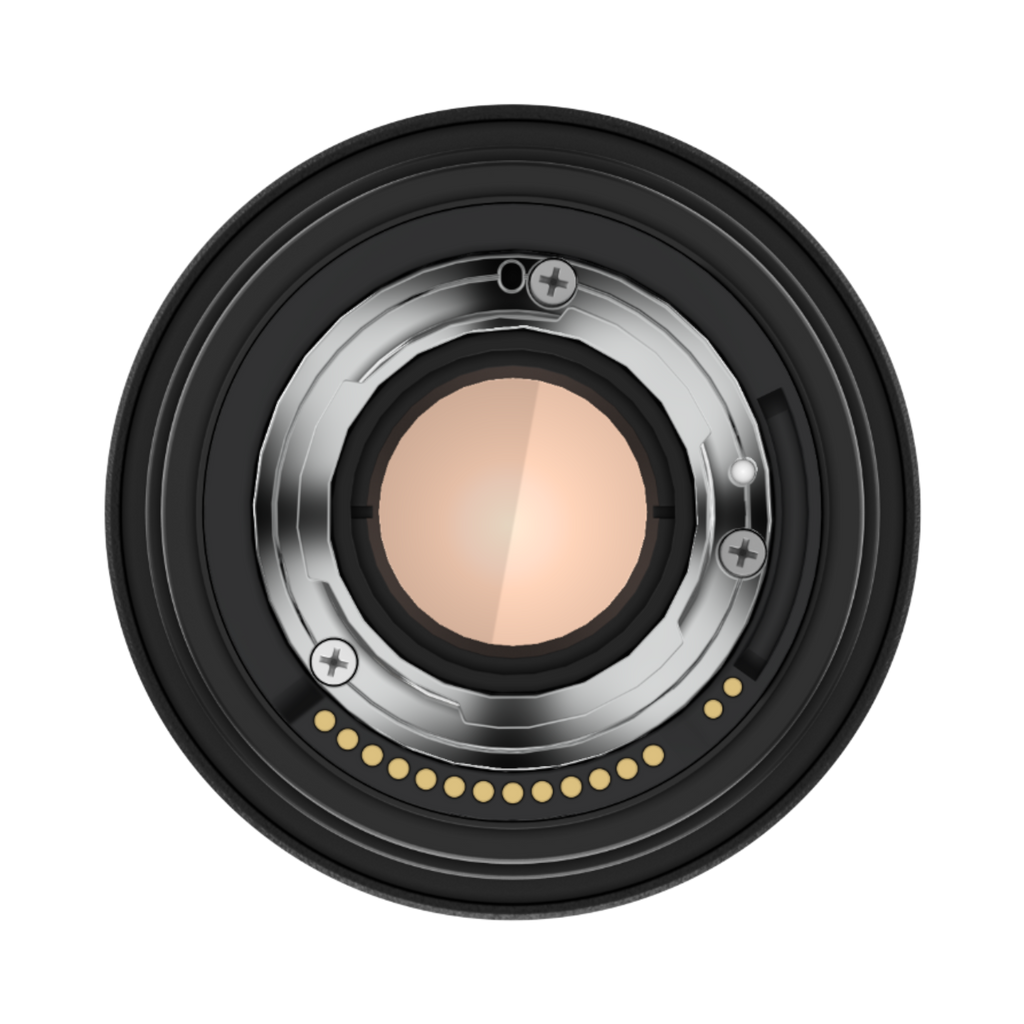

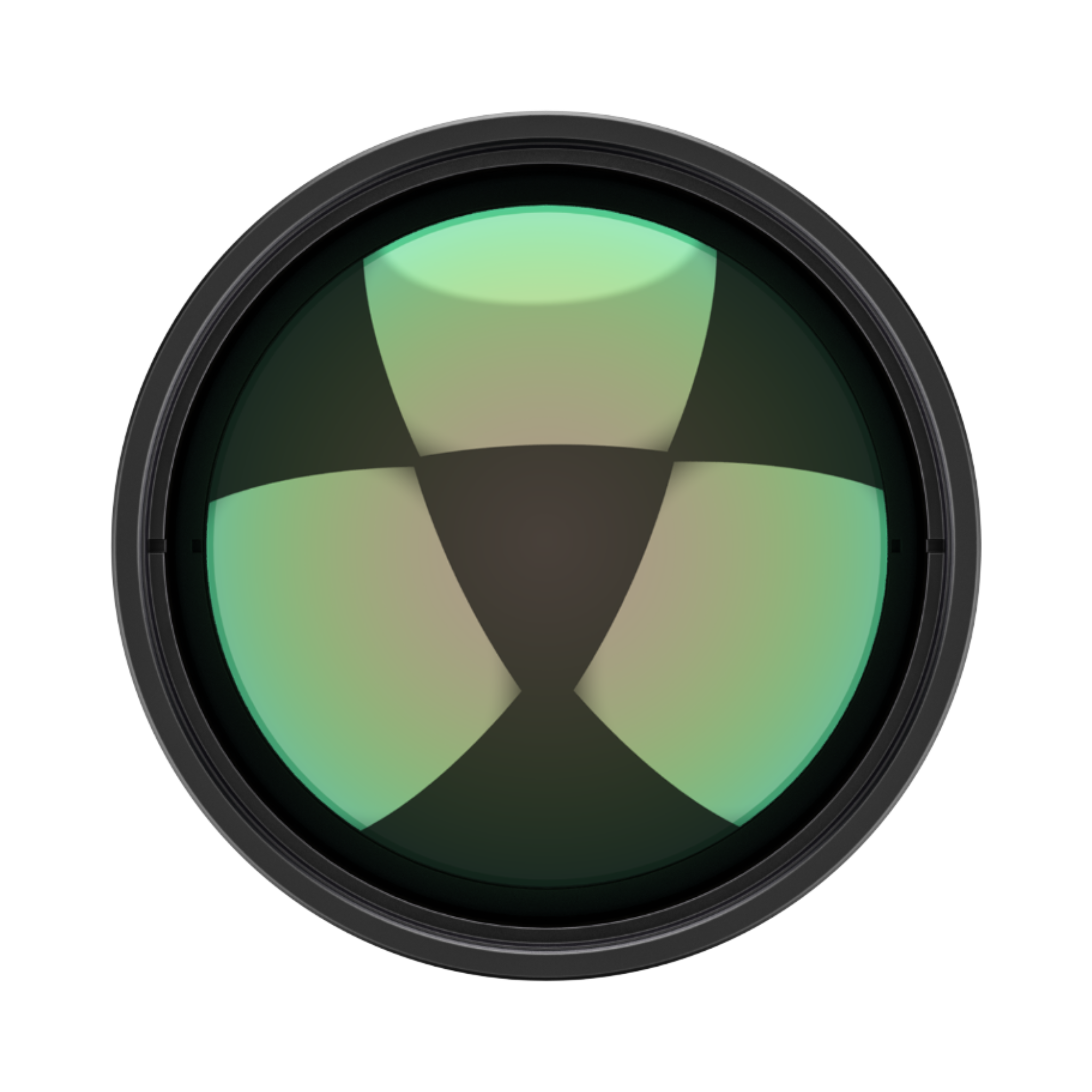

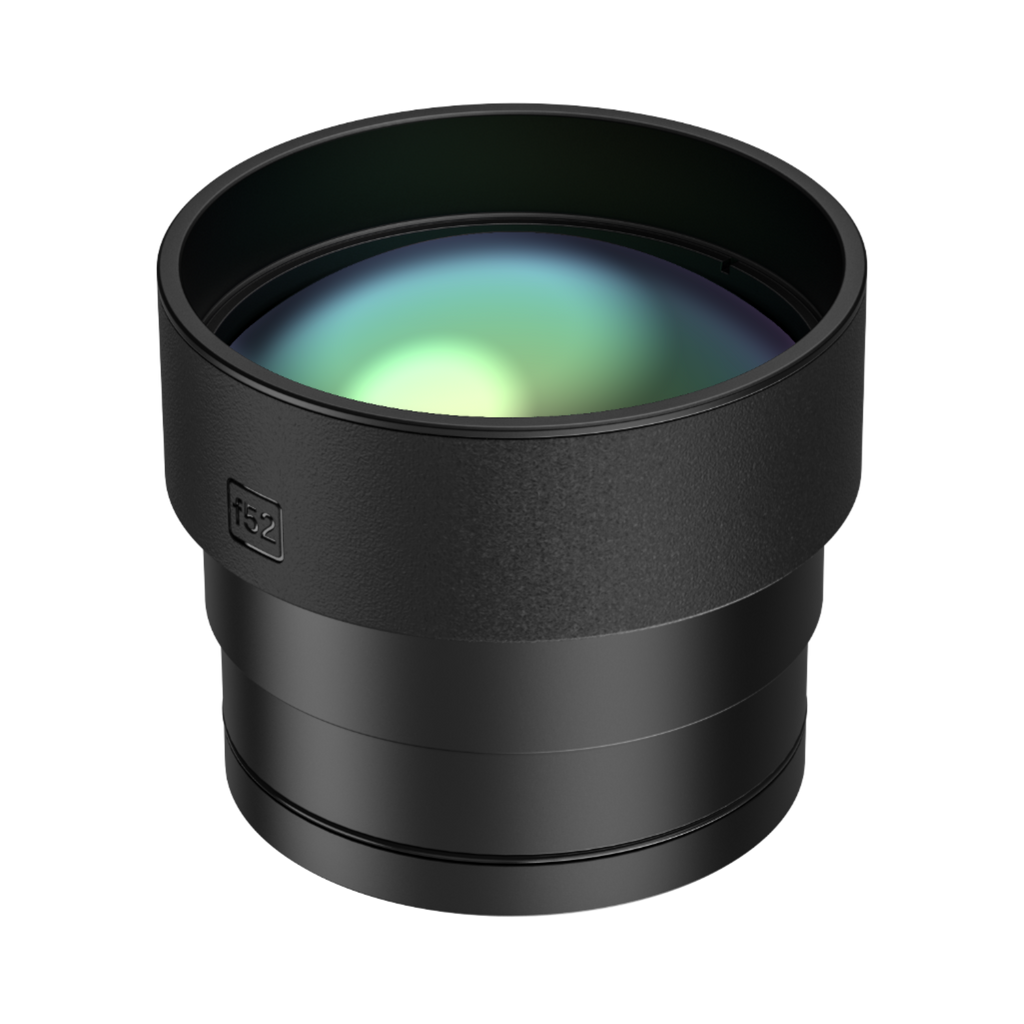

2× telephoto lens for the HIKMICRO SP series
Interchangeable 2× telephoto lens for HIKMICRO SP40, SP40H, SP60 and SP60H thermography cameras. Halves the spot size at a given distance, so a connector on an overhead line or a bushing across a substation stays measurable. Note that lenses are factory temperature-calibrated to a camera when they are ordered together with it — a lens bought separately later needs the camera and lens to be calibrated as a pair at a calibration centre if calibrated measurement accuracy is required.
Key features
-
Field of view — SP40 / SP40H: 9° × 6.8°; SP60 / SP60H: 12° × 9°
-
Focal length — 51.4 mm
-
Bayonet interchangeable — swaps in the field without tools
-
Full autofocus support — works with all five SP focus modes including laser-assisted AF
-
Calibration note — order with the camera for factory temperature calibration, or have the pair calibrated afterwards
Typical applications
- Extending or narrowing the field of view of an existing SP-series camera
- Substation and overhead line inspection at a safe distance
- Building a multi-lens kit around one camera body
- Replacing a damaged or lost lens
Technical specifications
| Lens type |
2× telephoto lens |
| Focal length |
51.4 mm |
| Field of view |
SP40 / SP40H: 9° × 6.8°; SP60 / SP60H: 12° × 9° |
| Compatibility |
HIKMICRO SP40, SP40H, SP60, SP60H |
| Mount |
SP-series interchangeable lens mount |
| Calibration |
Factory temperature calibration when ordered together with the camera |
In the box
- HIKMICRO 2× telephoto lens
- Lens caps
- Storage case
Model information
| Brand |
HIKMICRO |
| Model |
HM-SP620-LENS |
| Manufacturer part number (MPN) |
HM-SP620-LENS |
