Description

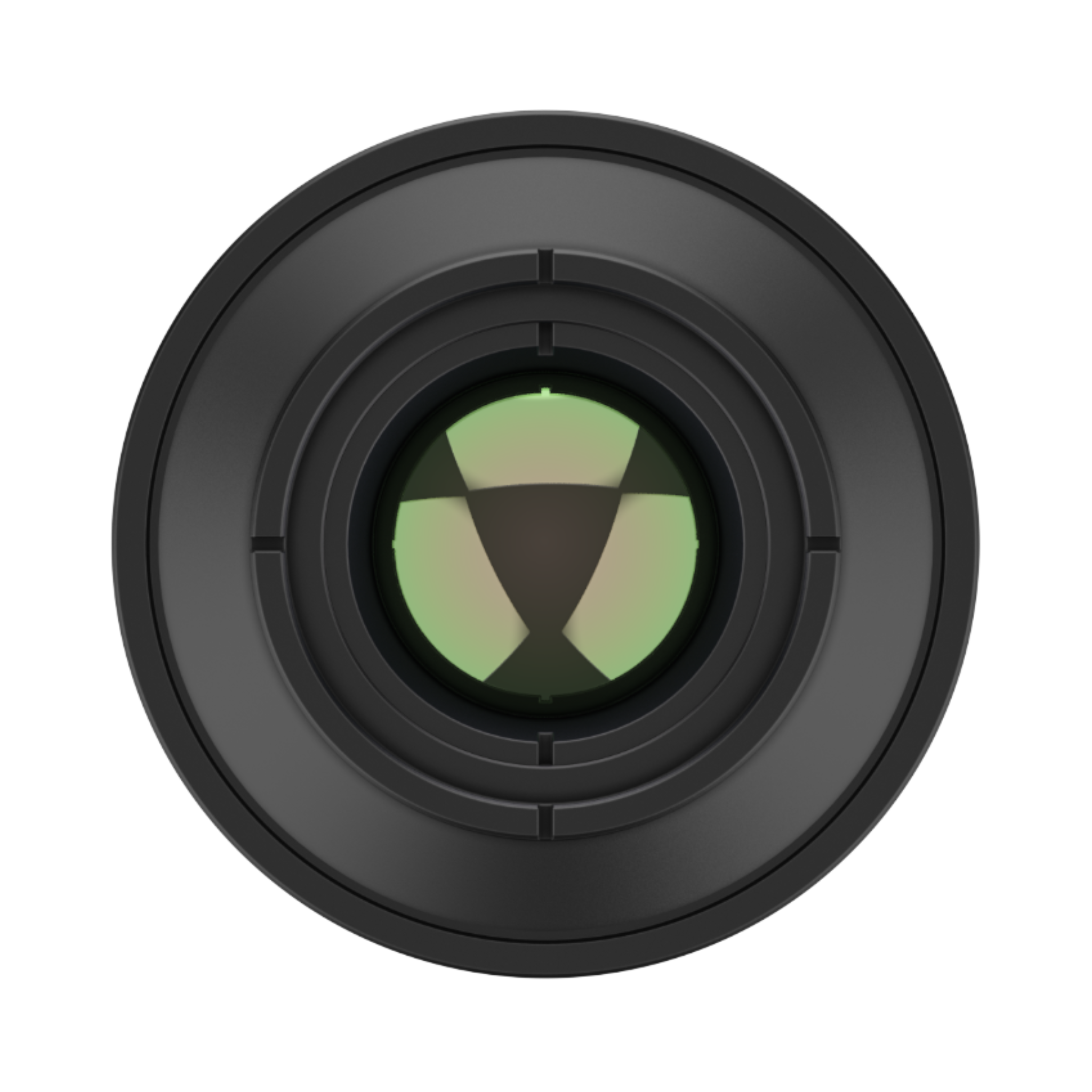

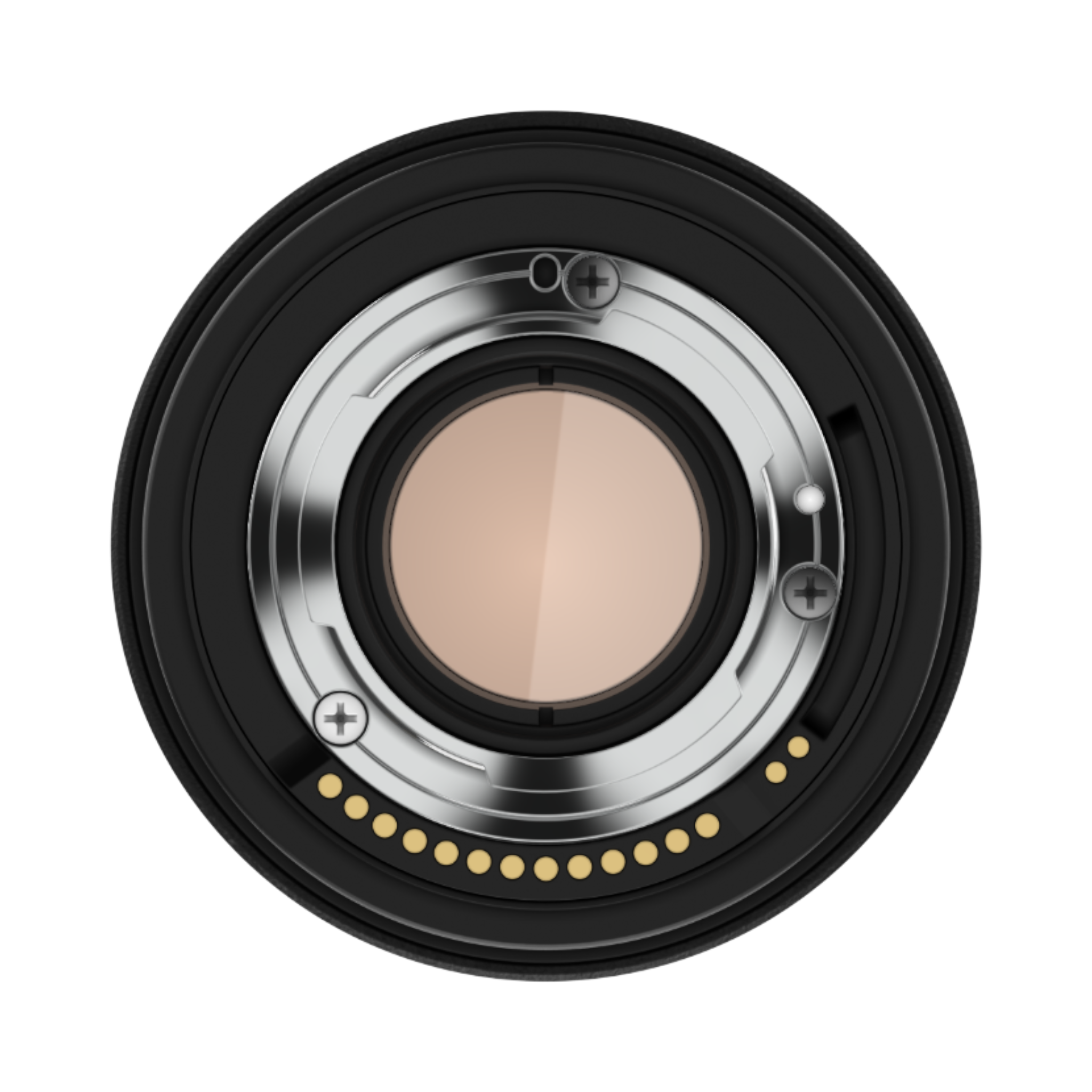

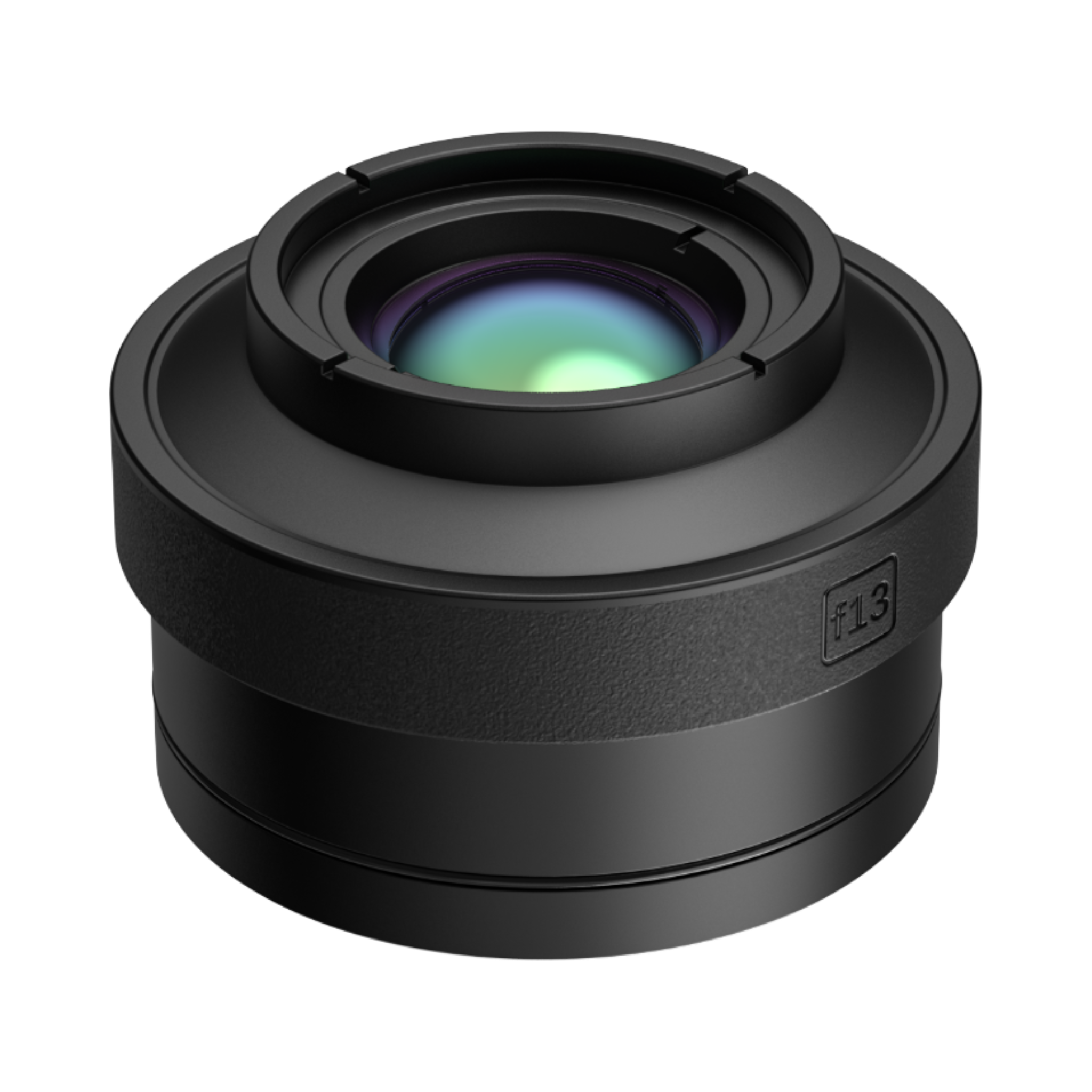

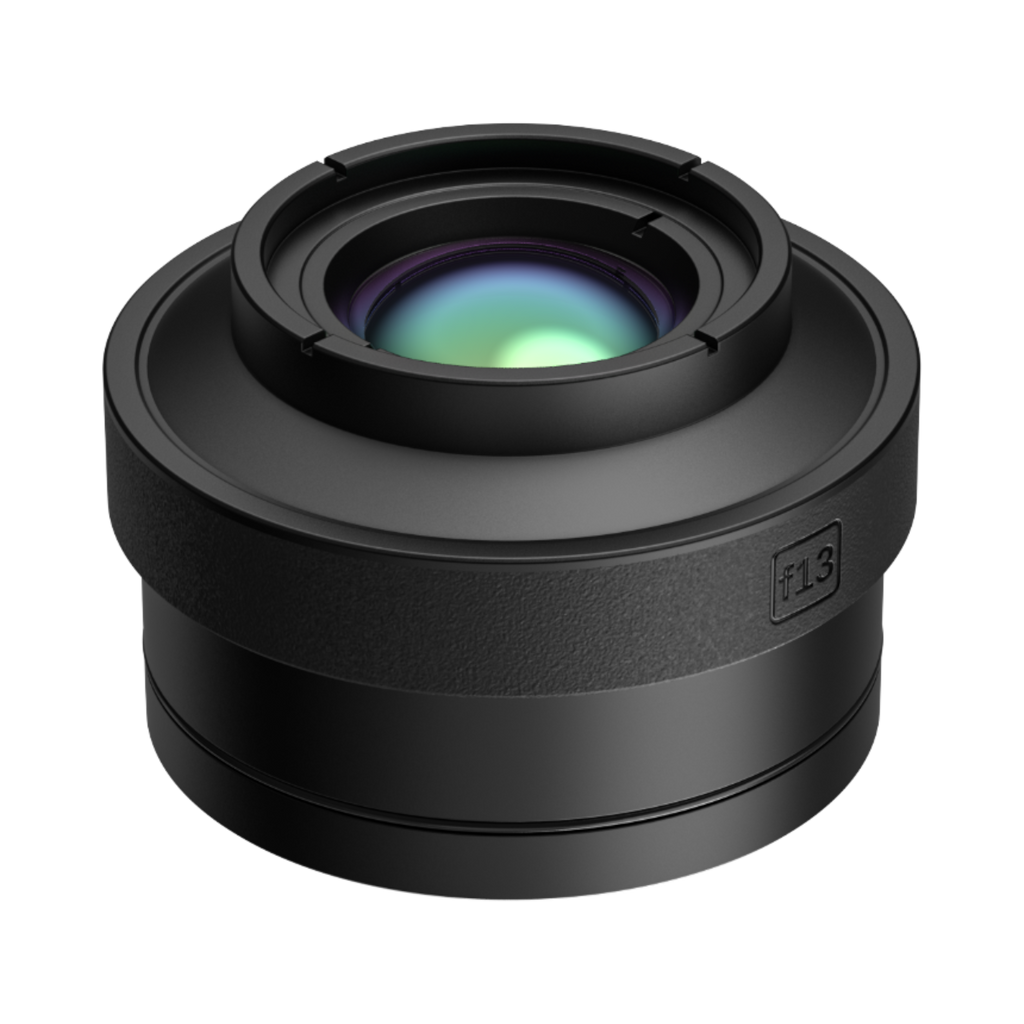

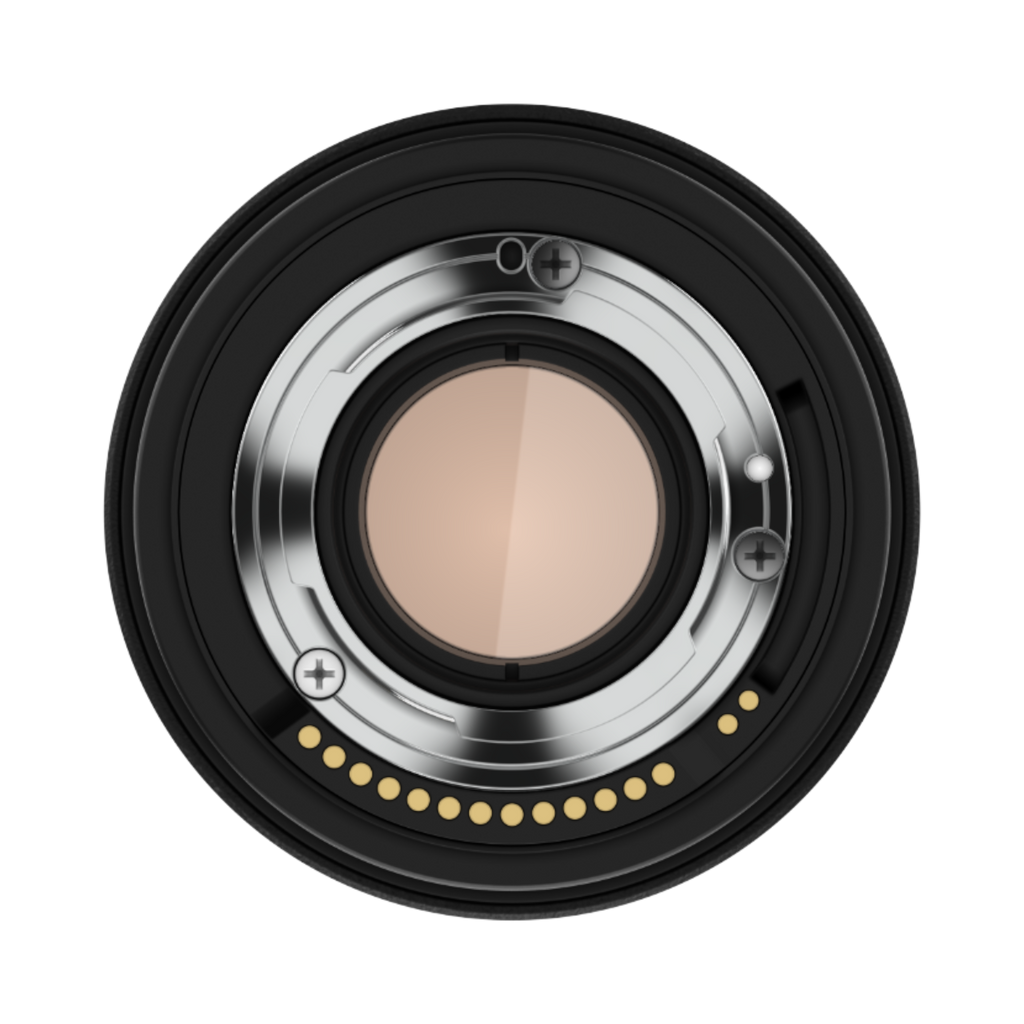

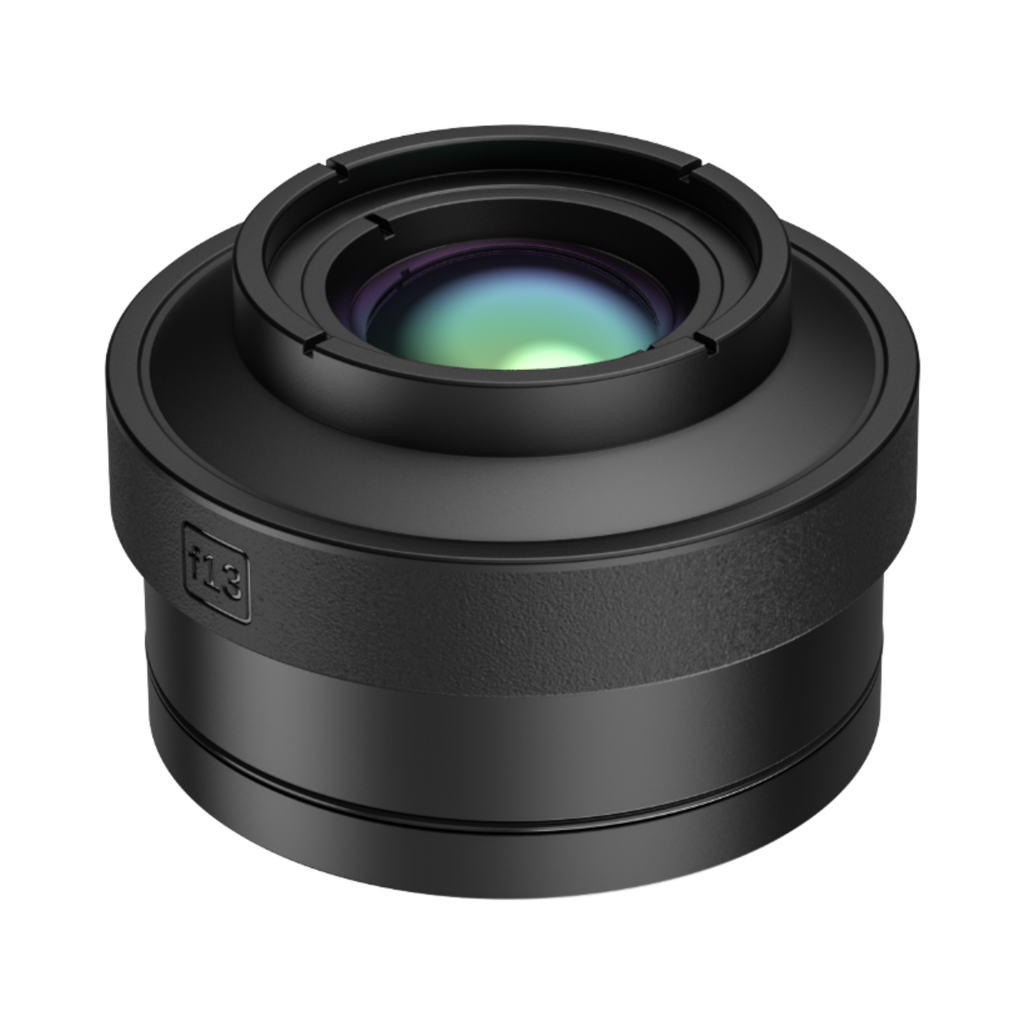

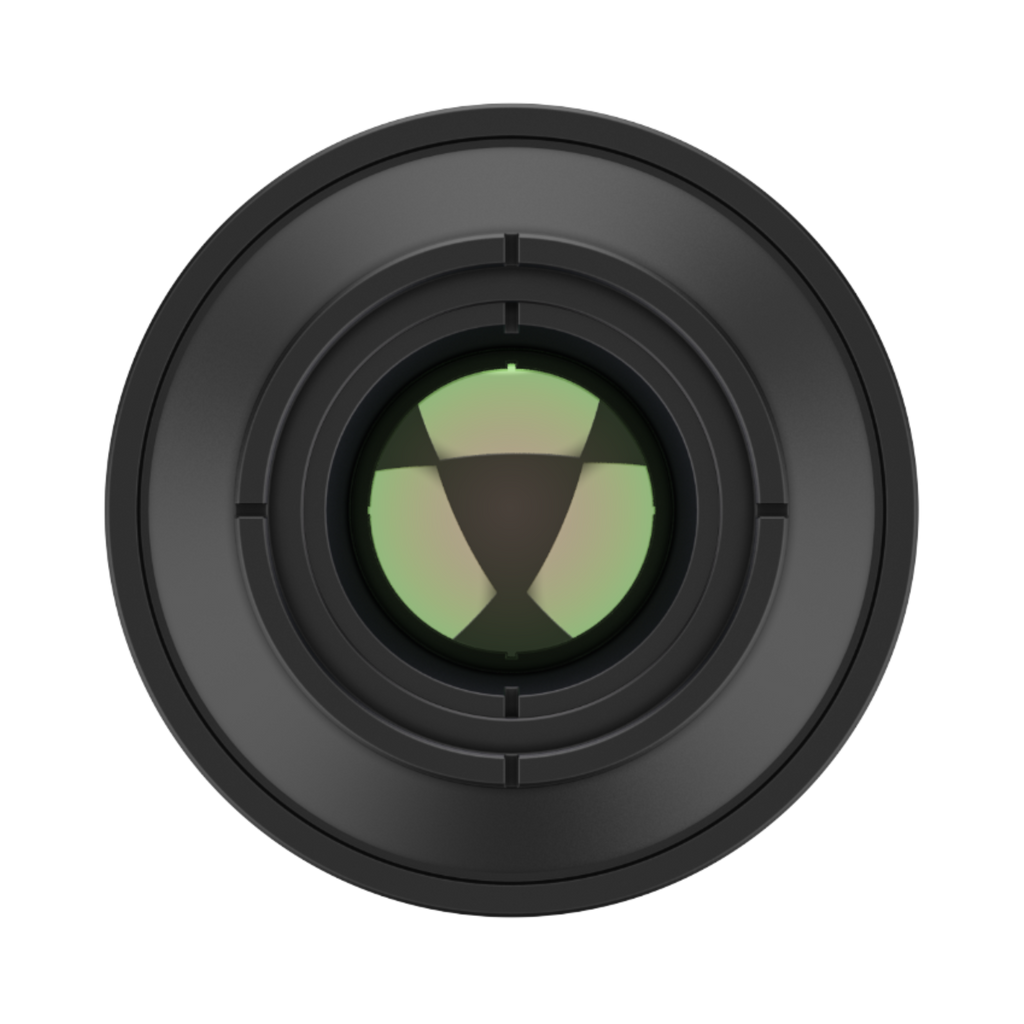

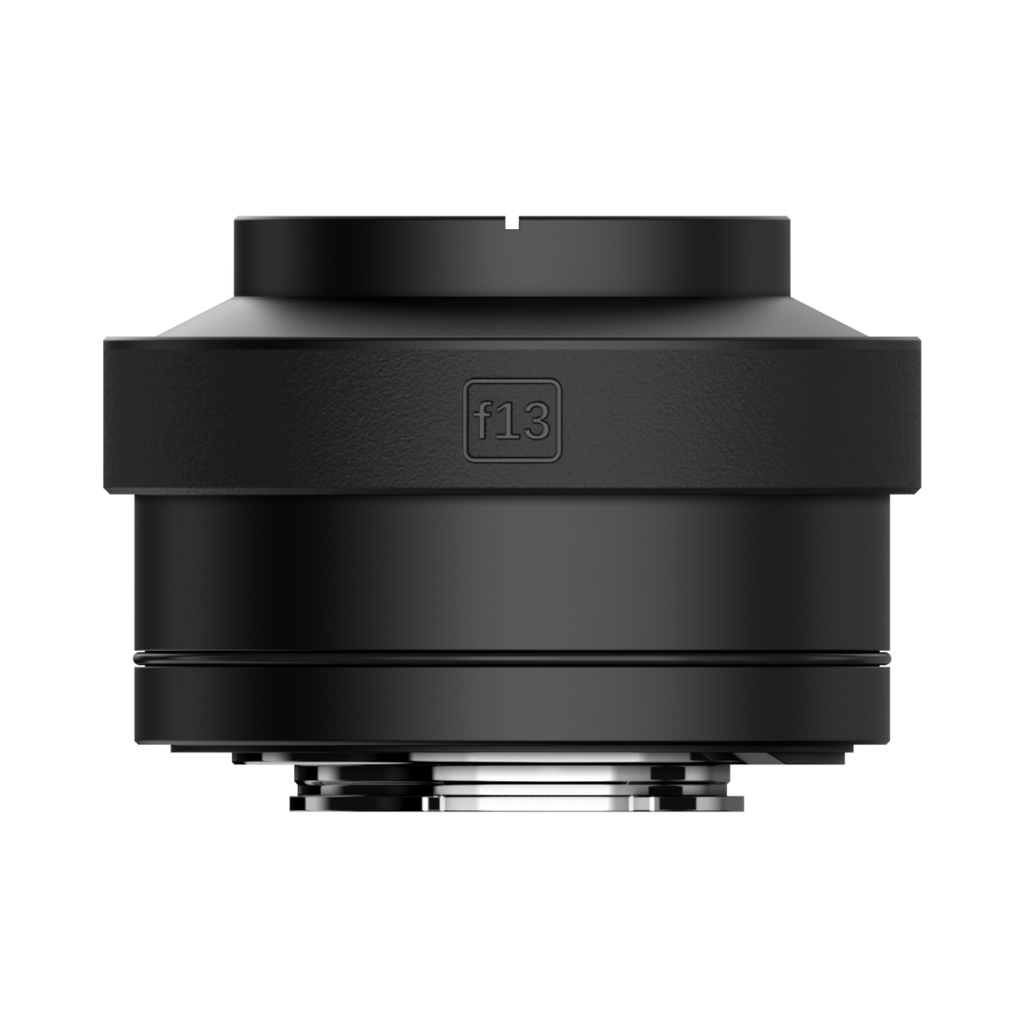

0.5× wide-angle lens for the HIKMICRO SP series
Interchangeable 0.5× wide-angle lens for HIKMICRO SP40, SP40H, SP60 and SP60H thermography cameras. Doubles the field of view, which is what you want for scanning walls, roof spaces, switchrooms and large plant in as few frames as possible. Note that lenses are factory temperature-calibrated to a camera when they are ordered together with it — a lens bought separately later needs the camera and lens to be calibrated as a pair at a calibration centre if calibrated measurement accuracy is required.
Key features
- Field of view — SP40 / SP40H: 37.3° × 27.8°; SP60 / SP60H: 50° × 37.3°
- Focal length — 12.6 mm
- Bayonet interchangeable — swaps in the field without tools
- Full autofocus support — works with all five SP focus modes including laser-assisted AF
- Calibration note — order with the camera for factory temperature calibration, or have the pair calibrated afterwards
Typical applications
- Extending or narrowing the field of view of an existing SP-series camera
- Large-area building and plant surveys
- Building a multi-lens kit around one camera body
- Replacing a damaged or lost lens
Technical specifications
| Lens type | 0.5× wide-angle lens |
| Focal length | 12.6 mm |
| Field of view | SP40 / SP40H: 37.3° × 27.8°; SP60 / SP60H: 50° × 37.3° |
| Compatibility | HIKMICRO SP40, SP40H, SP60, SP60H |
| Mount | SP-series interchangeable lens mount |
| Calibration | Factory temperature calibration when ordered together with the camera |
In the box
- HIKMICRO 0.5× wide-angle lens
- Lens caps
- Storage case
Model information
| Brand | HIKMICRO |
| Model | HM-SP605-LENS |
| Manufacturer part number (MPN) | HM-SP605-LENS |
